Insert SIM & Memory Card

Install and remove the SIM and memory card (MicroSD).

INSTRUCTIONS & INFO
  1. INSERT SIM CARD: The Missing SIM icon will be displayed in the Notification bar when there is no SIM card in the device.
    device 5147/9006419_01.jpg

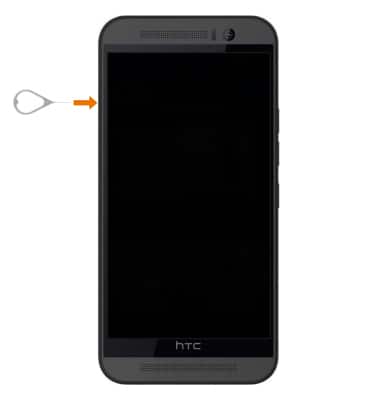

  2. The SIM tray is located on the left side of the device. To insert a SIM card, first insert a SIM tool or paperclip into the small hole to eject the SIM tray.
    device 5147/9006419_02.jpg

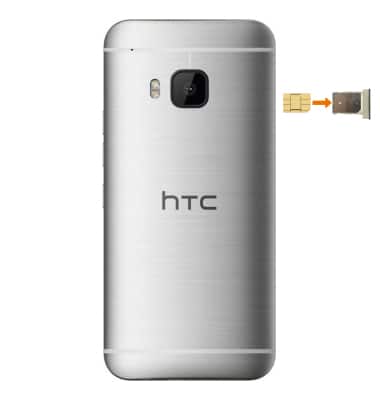

  3. Turn the phone over so that the back side is facing up. Insert the Nano-SIM card into the SIM tray with the gold contacts facing up and the notched edge in the lower right.
    device 5147/9006419_03.jpg

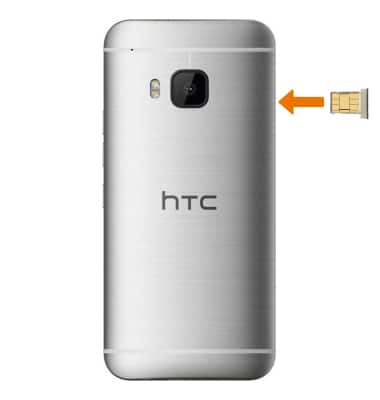

  4. Insert the SIM tray back into the device.
    device 5147/9006419_04.jpg

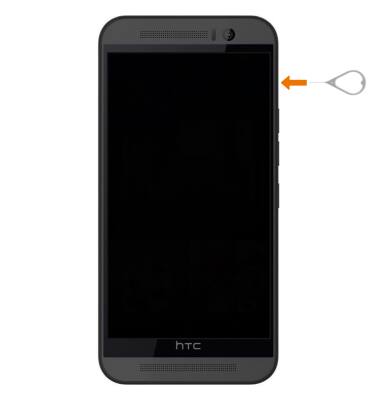

  5. INSERT MICROSD CARD: The microSD card tray is located on the right side of the device. To insert a microSD card, first insert a SIM tool or paperclip into the small hole to eject the microSD card tray.
    Note: MicroSD cards are sold separately. This device can use a microSD card up to 2TB. To prevent data corruption, it is recommended to unmount your memory card before removing it. To unmount your memory card, select Settings > Storage > Eject icon.
    device 5147/9006419_05.jpg

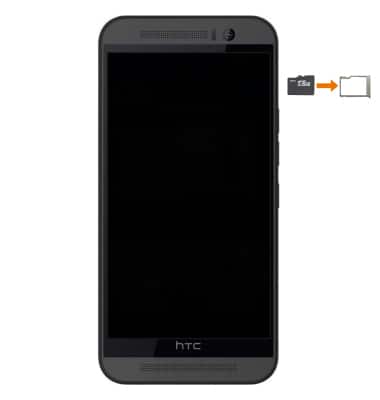

  6. Insert the microSD card into the SIM tray with the gold contacts facing down and the notched edge on the top.
    device 5147/9006419_06.jpg

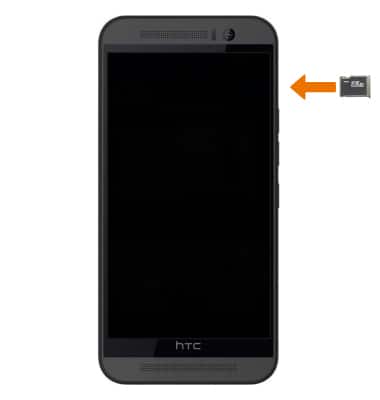

  7. Insert the microSD card tray back into the device.
    device 5147/9006419_07.jpg
