Change Watch Band

How to remove or attach the watch bands of the device.



INSTRUCTIONS & INFO
1. The watch band knobs are located on the back of the device.

Note: Each band has its own watch band knob.

Image 1

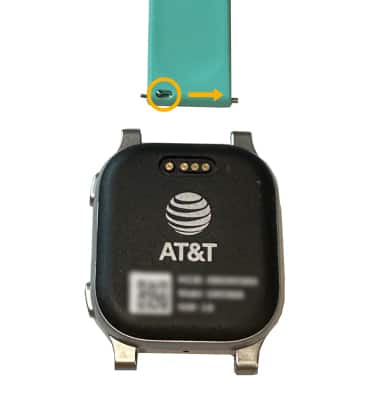

2. To assemble, use your finger to pull the watch band knob in towards the center of the wrist band. Make sure that the metal pin is flush with the side of the watchband.



Image 2



3. Place the metal pin that is protruding from the band (the opposite side of the release knob) into the pin hole on the side of the watch. Line up the wrist band with the other pin hole and release the watch band knob. The watch band should lock into place.


Note: Repeat this process to attach the second watch band.

Image 3

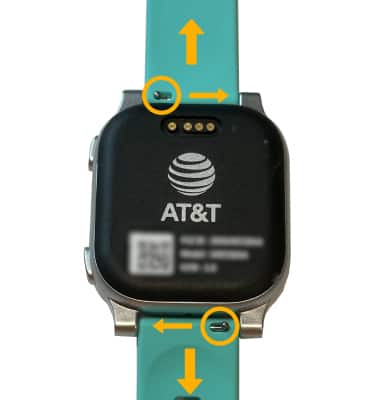

4. To remove a the watch band, use your finger to pull the watch band knob away from the side of the watch then pull the watch band away from the watch to remove.

Image 4
