Connect WPS Devices
Which device do you want help with?
Change device

Connect WPS Devices

Learn how to connect WPS devices.

INSTRUCTIONS & INFO

In this tutorial, you will learn how to:



• Access WPS settings
• Use Push WPS button
• Use Device PIN


Access WPS settings

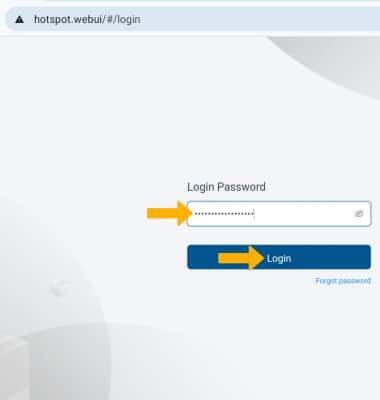

1. From your connected device's web browser, go to http://hotspot.webui. Enter your password, then select Login.



Note: If you haven’t logged into the Web admin page before, the default password will be ‘admin’. You will be prompted to change the admin password. Ensure that your device is connected to your Turbo Hotspot 3's Wi-Fi network. For more information, please see the Connect Devices to Wi-Fi or Connect PC or Mac to Wi-Fi tutorials.


Image 1

2. Select the Wi-Fi drop-down menu on the left side of the screen, then select WPS.

Image 2

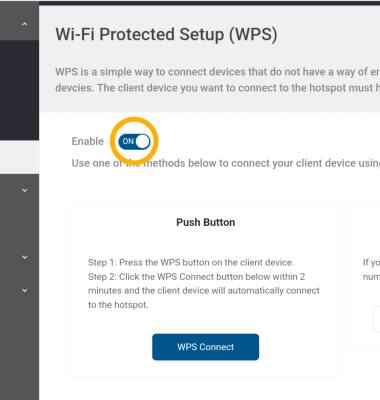

3. Select the Enable switch to enable/disable WPS.

Image 3



Use Push WPS button

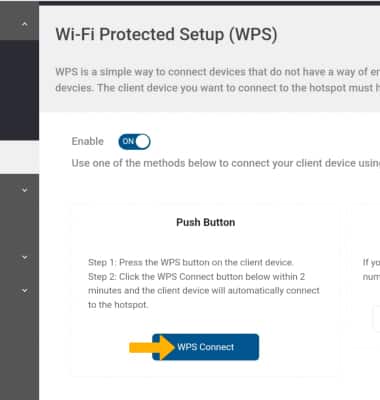

1. To enable Push Button WPS setup, select WPS Connect.

Image 4

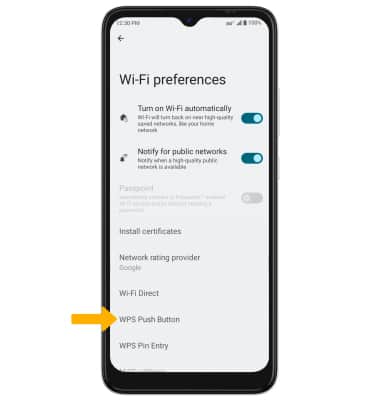

2. On the WPS-enabled device, navigate to and select WPS Push Button. Follow the prompts to complete setup.

Image 5


Use Device PIN

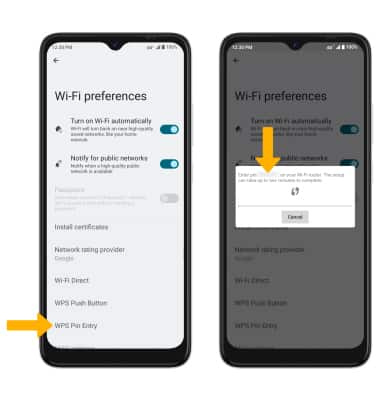

1. On the WPS-enabled device, navigate to and select WPS Pin Entry. The Device PIN will appear.

Image 6

2. To enable Device PIN WPS setup, from the WebUI enter the PIN from the WPS-enabled device then select Submit.

Image 7
