View & Manage Data

Access Usage Manager to view data usage and set data limits.
INSTRUCTIONS & INFO

In this tutorial, you will learn how to:

• Set data usage alert
• View data usage on management website
• View data usage on hotspot


Set data usage alert

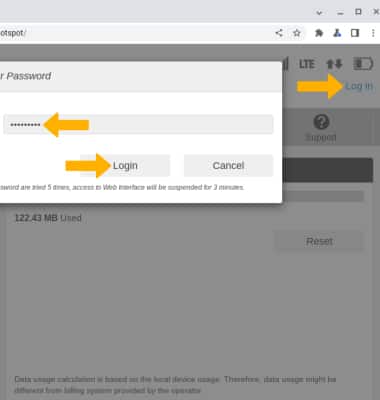

1. From your device's web browser, go to http://mobile.hotspot. Click Log in > enter your Password > click Login.

Note: You may need to enter the Mobile Hotspot password. If you haven’t logged into the Web admin page before, the default password will be ‘admin’. You may be prompted to change the admin password. Ensure that your device is connected to the Franklin A10's Wi-Fi network. For more information, please see the Connect Devices to Wi-Fi or Connect PC or Mac to Wi-Fi tutorials.

Image 1

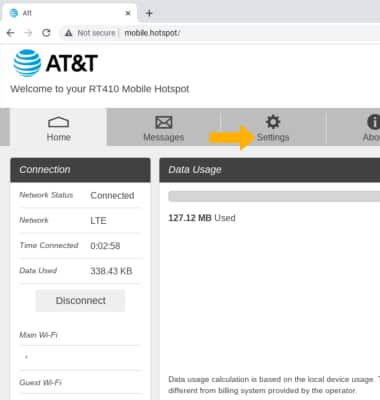

2. Click Settings at the top of the screen.

Image 2

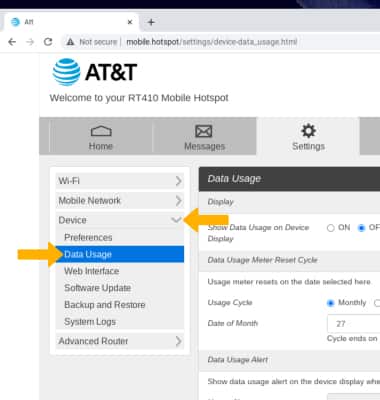

3. Click the Device menu, then click Data Usage.

Image 3

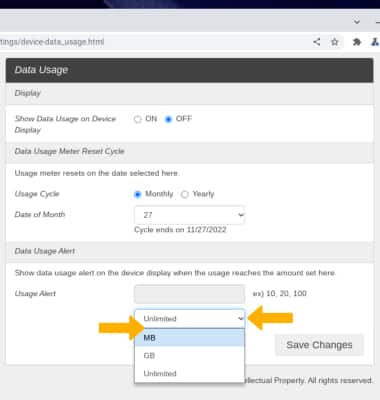

4. Scroll to and click the Usage Alert drop-down, then click the desired option.

Image 4

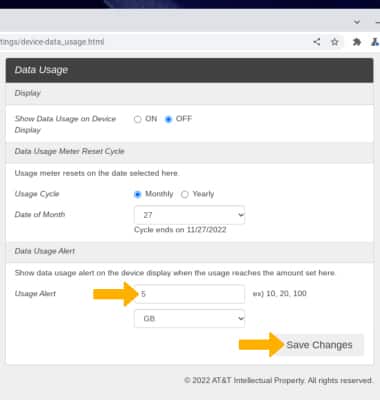

5. Enter the desired amount, then click Save Changes.

Image 5




View data usage on management website

Data usage will be displayed on the home screen of the management website.


Image 6



View data usage on hotspot

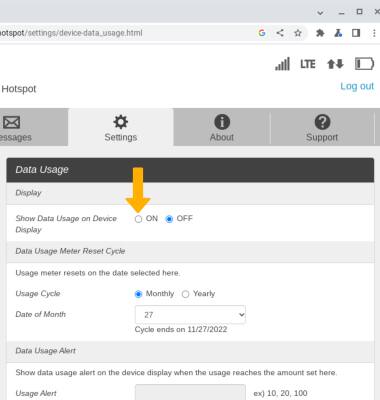

1. From the Data Usage screen on the management website, click the ON circle beside Show Data Usage on Device Display.

Image 7

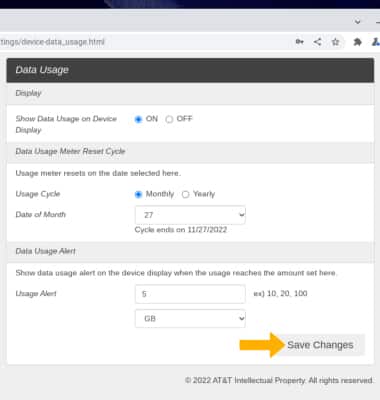

2. Scroll to and click Save Changes.

Image 8

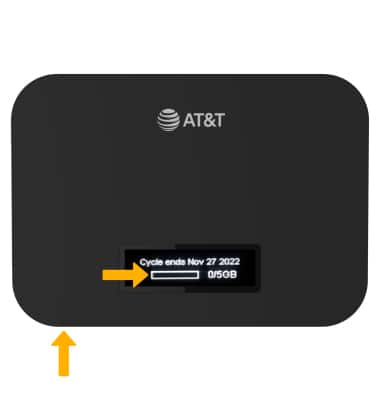

3. From the mobile hotspot, click the Power button to cycle to the Data usage screen to view Data usage.

Image 9
