Device Assembly

Install and remove the SIM and battery.


INSTRUCTIONS & INFO
1. From the bottom of the device, use the notch on the sides to lift the back plate up and off the device.

Image 1

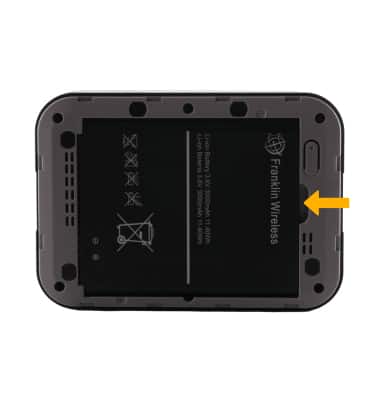

2. To remove the battery, gently lift from the notch at the right side of the battery.

Image 2

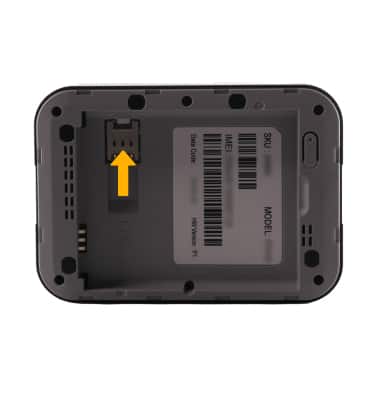

3. To insert the SIM card, slide a nanoSIM card into the SIM slot.

Image 3

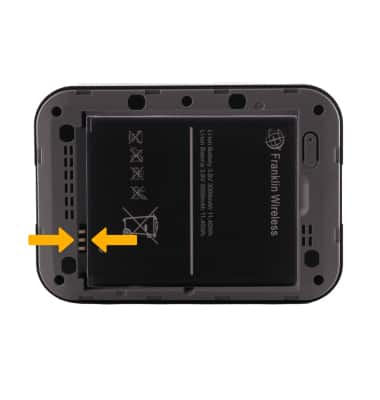

4. To insert the battery, line up the gold contacts at the bottom right of the battery with the gold contacts on the device and gently slide in until the battery is in place.

Image 4

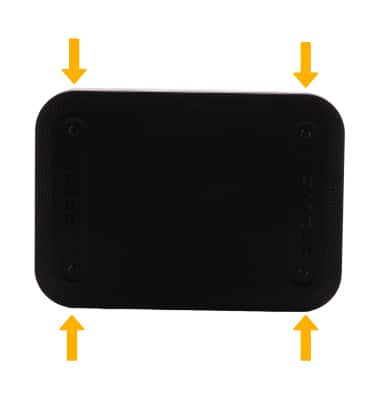

5. Reattach the back plate by pressing it into place.

Image 5
