Device Assembly

Install and remove the SIM and battery.


Prenote info
If a SIM is not in the device, the No SIM icon Missing SIM icon will be displayed on the device home screen and an alert will be displayed on the screen.

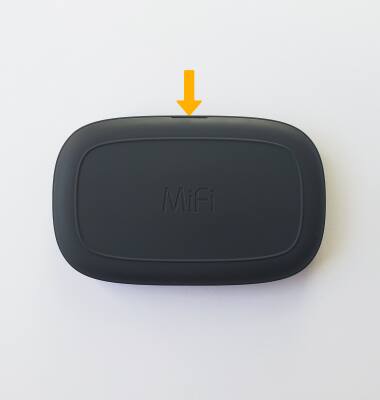

1. From the bottom of the device, use the notch at the top to lift the back plate up and off the device.

Image 1

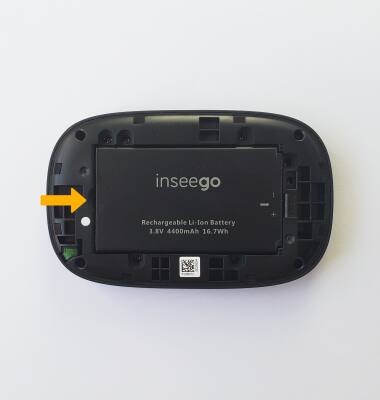

2. To remove the battery, gently lift from the notch at the left of the battery.

Image 2

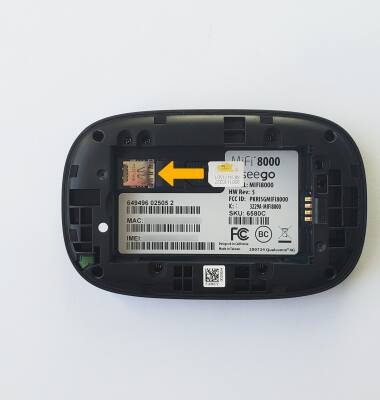

3. To insert the SIM card, slide a nanoSIM card into the SIM slot.

Image 3

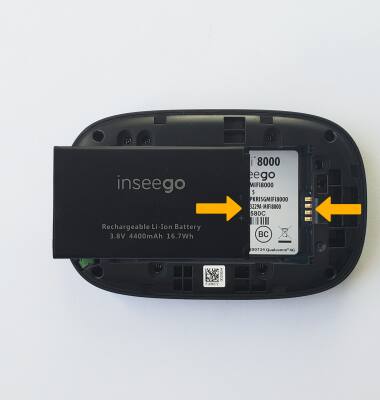

4. To insert the battery, line up the gold contacts at the bottom right of the battery with the gold contacts on the device and gently slide down until the battery is in place.

Image 4

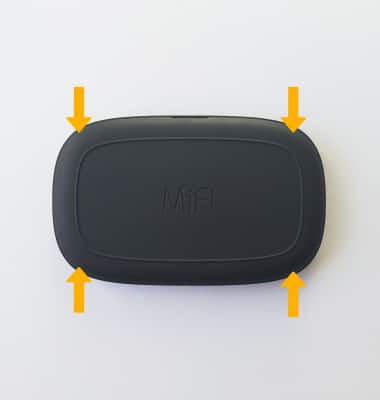

5. Reattach the back plate by pressing it into place.

Image 5
