Insert or Remove SIM & Memory Card

Get instructions about how to install or remove a SIM or memory card in your device.
INSTRUCTIONS & INFO

Prenote info

MicroSD/memory cards expand the storage capacity of the device and are sold separately. This device can use a microSD card up to 512GB.
In this tutorial, you will learn how to:

• Locate SIM tray
• Insert or remove SIM & microSD card

The no sim icon No SIM icon will be displayed in the Notification bar when there is no SIM card in the device.



Locate SIM tray

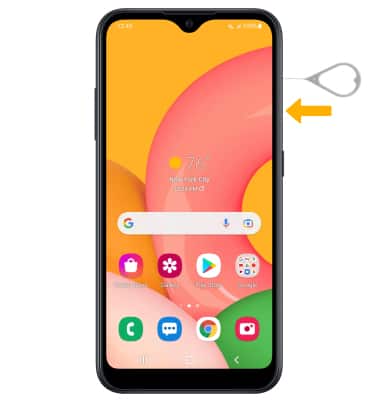

The SIM & microSD tray is located on the top right side of the device. To insert a SIM or microSD card, insert a SIM tool into the small hole to eject the SIM & microSD tray.

Note: To prevent data corruption, it is recommended to unmount your memory card before removing it. To unmount your memory card, from the home screen, swipe down from the Notification bar, then select the settings Settings icon > Battery and device care > Storage > Advanced > eject Eject icon.

Image 1




Insert or remove SIM & microSD card


Image 2

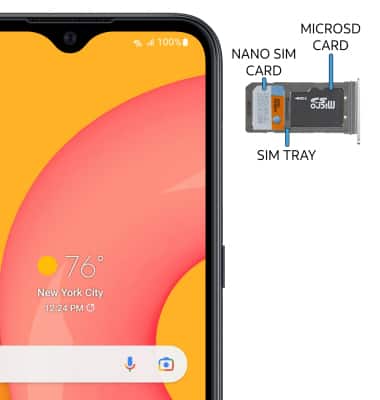

• Insert or remove the Nano SIM card into the SIM tray with the gold contacts facing down and the notched edge in the upper left. Gently press the SIM card in until it clicks into place.
• Insert or remove the microSD card into the SIM tray with the gold contacts facing down and the notched edge on the top. Gently press the microSD card in until it clicks into place.



Storage

Internal Memory: Up to 16GB
External Memory: Up to 512GB
