Insert SIM & Memory Card

Get instructions about how to install a SIM or memory card for your device.

INSTRUCTIONS & INFO
Prenote info
MicroSD/memory cards expand the storage capacity of device and are sold separately. This device can use a microSD card up to 400GB.
The no sim icon No SIM icon will be displayed in the Notification bar when there is no SIM card in the device.

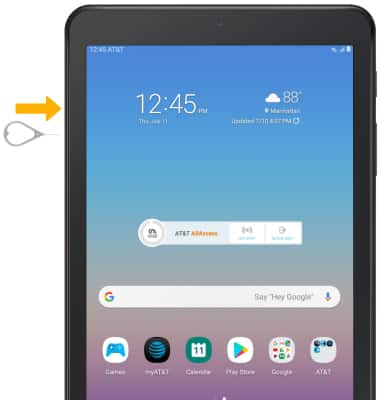

Locate SIM tray

The SIM & microSD tray is located on the left side of the device. To insert a SIM or microSD card, insert a SIM tool or paperclip into the small hole to eject the SIM & microSD tray.

Note: To prevent data corruption, it is recommended to unmount your memory card before removing it. To unmount your memory card, from the home screen swipe down from the Notification bar, then select the Settings icon > Device care > Storage > Menu icon > Storage settings > SD card > Unmount.

Step 1

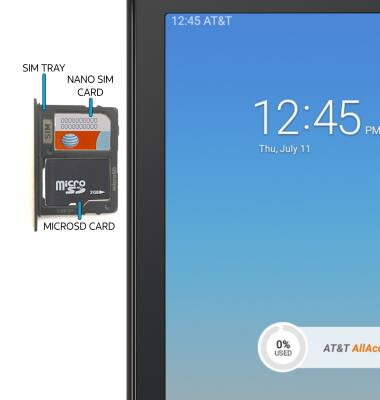

Insert or remove SIM & microSD card


Step 2

• Insert or remove the Nano-SIM card into the SIM tray with the gold contacts facing down and the notched edge in the upper right. Gently press the SIM card in until it clicks into place.
• Insert or remove the microSD card into the SIM tray with the gold contacts facing down and the notched edge on the lower right. Gently press the microSD card in until it clicks into place.



Storage

Internal Memory: Up to 32GB
External Memory: Up to 400GB
