Phone Assembly
MicroSD/memory cards expand the storage capacity of device and are sold separately. This device can use a microSD card up to 256GB.
1. The Missing SIM icon will be displayed in the Notification bar when there is no SIM card in the device.
2. REMOVE BACK COVER & BATTERY: Remove the back cover by inserting your thumbnail into the notch on the top right of the back of the device and lifting up. Remove the battery by gently pulling up from the notch on the bottom.
3. INSERT/REMOVE SIM CARD: Insert the Nano-SIM card into the SIM slot with the metal contacts facing down and the notched edge going in first. Push until it is all the way in. To remove, simply slide it down.
4. INSERT/REMOVE MEMORY CARD: Insert an optional MicroSD card into the MicroSD card slot, with the metal contacts facing down and the notched edge going in first. Push until it is all the way in. To remove, simply slide it out.
Note: To prevent data corruption, it is recommended to unmount your memory card before removing it. To unmount your memory card, swipe down from the Notification bar then select the Settings icon > scroll to and select Device care > select Storage > Menu icon > Storage settings > Eject icon.

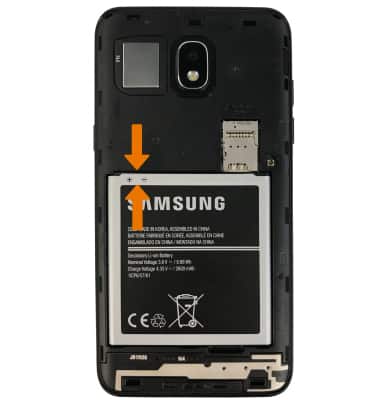

5. REPLACE BATTERY: Place the battery in the battery slot with the gold contacts on the battery lined up with the gold contacts on the phone.

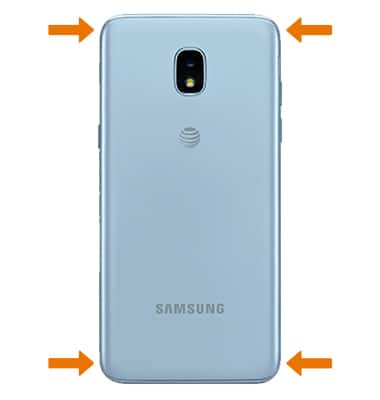

6. REPLACE BACK COVER: Place the cover on the back of the phone and gently push in until the cover clicks. The cover should be flush with the rest of the device.
