Device layout

Hardware features and software navigation of your device.

INSTRUCTIONS & INFO

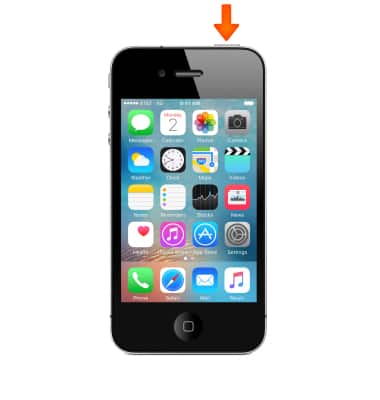

  1. Press the Sleep/Wake button to lock the device screen, or power the device on/off.
    device 5016/9006101_01.jpg

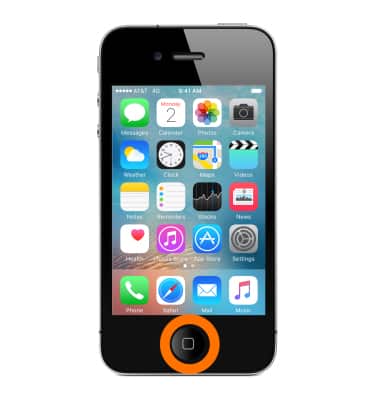

  2. Press the Home button to return to the home screen. Press the Home button twice to view currently running applications.
    device 5016/9006101_02.jpg

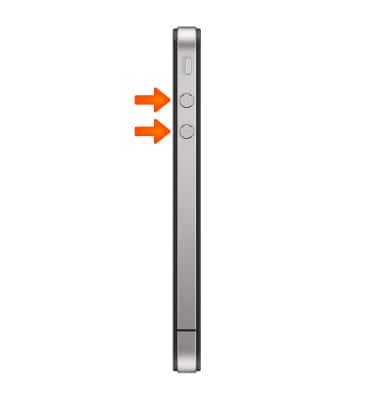

  3. Press the Volume buttons to adjust the volume.
    device 5016/9006101_03.jpg

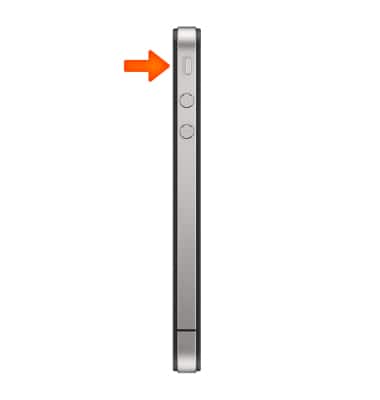

  4. Use the Ring/Silence switch to switch between the ring and silence modes.
    device 5016/9006101_04.jpg
  5. The iSight camera is located on the back of the device.
    device 5016/9006101_05.jpg

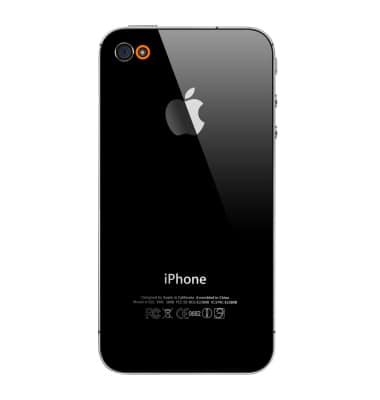

  6. The True Tone Flash is located on the back of the device.
    device 5016/9006101_06.jpg

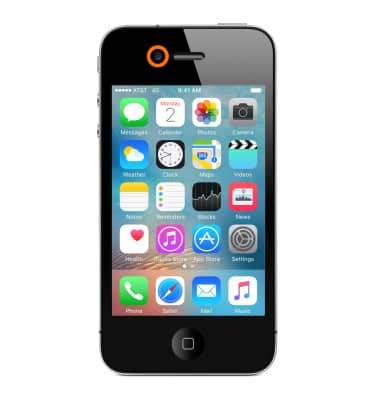

  7. The FaceTime camera is located on the top left of the device.
    device 5016/9006101_07.jpg

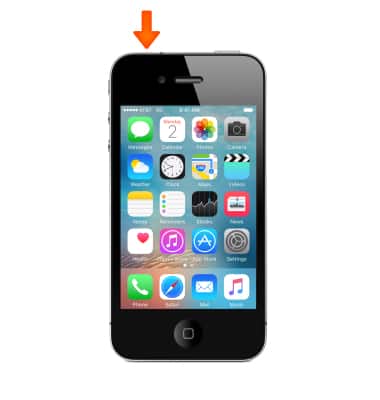

  8. The Headset jack is located on the top left of the device.
    device 5016/9006101_08.jpg
  9. The SIM card tray is located on the right side of the device.
    Note: The device uses a MicroSIM card.
    device 5016/9006101_09.jpg

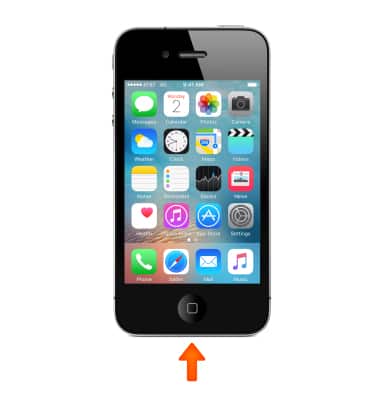

  10. The Lightning connector is located on the bottom of the device.
    device 5016/9006101_10.jpg
