Device layout

Provides an overview of the device layout.

INSTRUCTIONS & INFO
  1. The USB/Charging port is located on the right side of the device.
    device 2883/1462698.jpg

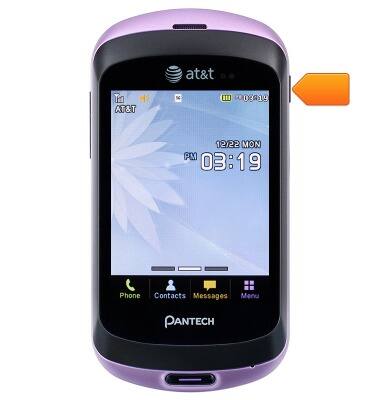

  2. Press the Power/Lock key to turn the device on or off.
    device 2883/1462699.jpg

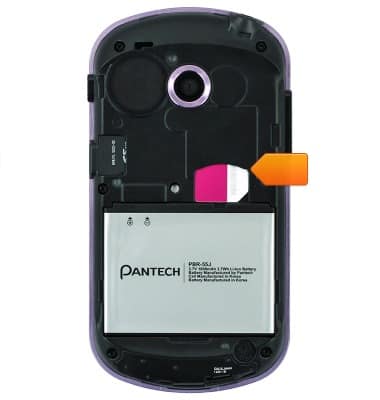

  3. The SIM card slot is located above the battery behind the back cover.
    device 2883/1462700.jpg

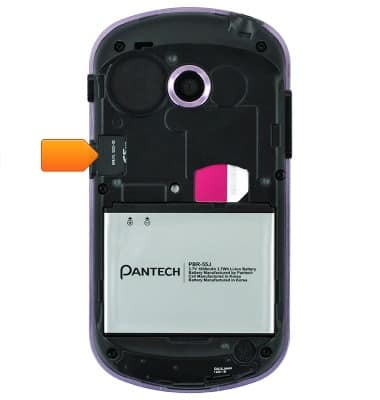

  4. The microSD card slot is located behind the back cover.
    device 2883/1462701.jpg

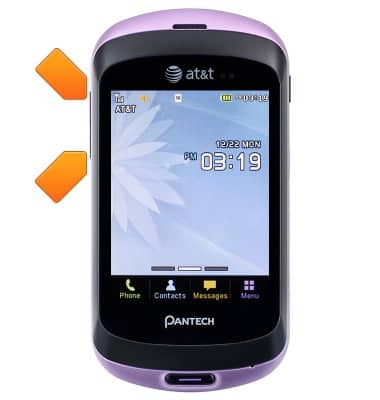

  5. To adjust the volume or launch multitasking, press the Volume keys.
    device 2883/1462702.jpg
  6. Press the Home/END key to end the current operation and return to the home screen.
    device 2883/1462703.jpg
  7. The Headphone jack is located on the top of the device.
    device 2883/1492812.jpg

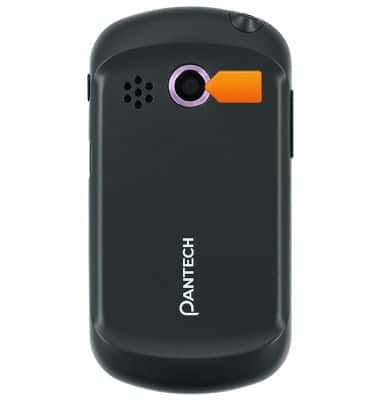

  8. The Rear Camera is located on the back of the device.
    device 2883/1492813.jpg

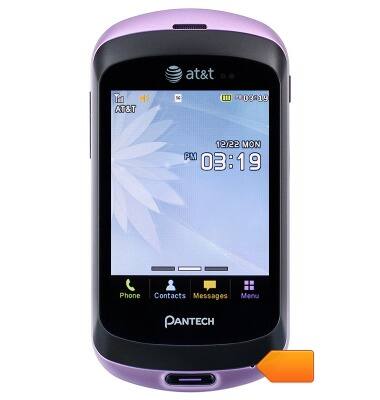

  9. The Microphone is located on the front of the device.
    device 2883/1492814.jpg

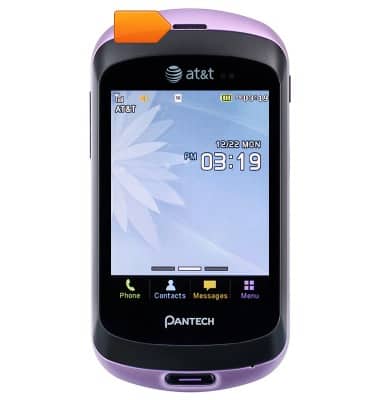

  10. The Earpiece is located at the top of the front of the device.
    device 2883/1492815.jpg

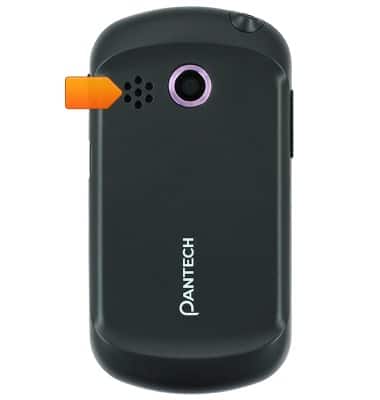

  11. The Speaker is located on the back of the device.
    device 2883/1492816.jpg

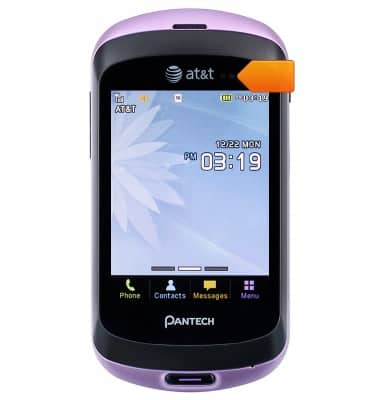

  12. The Proximity sensor is located above the screen on the front of the device.
    device 2883/1492817.jpg
  13. Slide the screen to access the Physical keyboard.
    device 2883/1492818.jpg

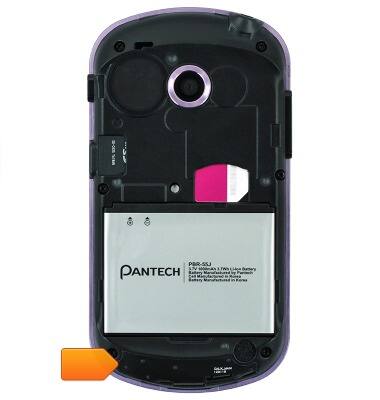

  14. The bottom of the back of the device is the Internal antenna area.
    device 2883/1492819.jpg
