Device layout

Provides an overview of the device layout.

INSTRUCTIONS & INFO

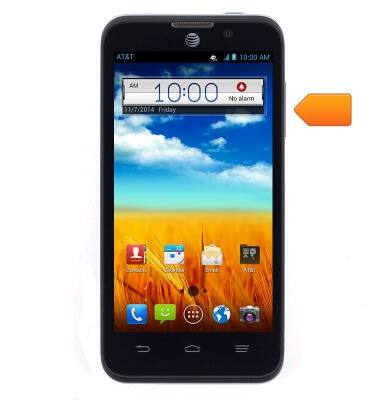

  1. Press the Volume keys to adjust media or call volume.
    device 2805/1387195.jpg

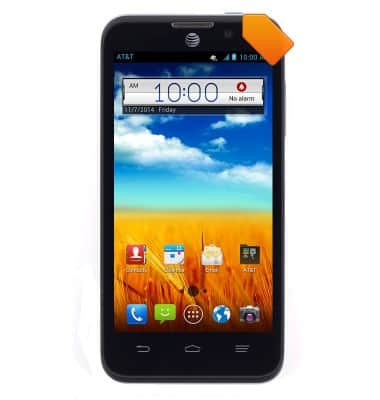

  2. Press the Power/Lock key to turn the device on or off, or put the display to sleep.
    device 2805/1387196.jpg
  3. The SIM card slot is located inside the SIM port of the device. The device uses a MicroSIM card.
    device 2805/1387197.jpg

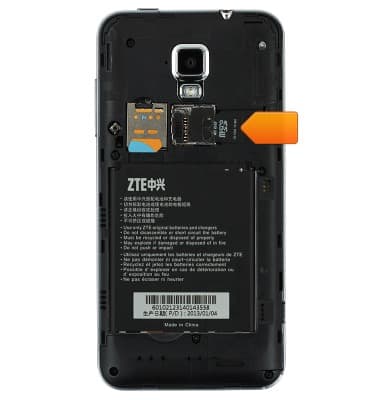

  4. The microSD card slot is located inside the SIM port of the device. A microSD card of up to 32 GB can be used.
    device 2805/1387198.jpg

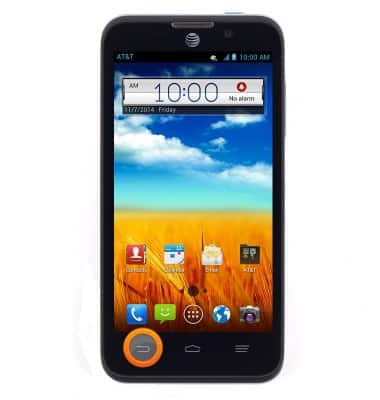

  5. Press the Back key to return to the previous screen.
    device 2805/1387199.jpg

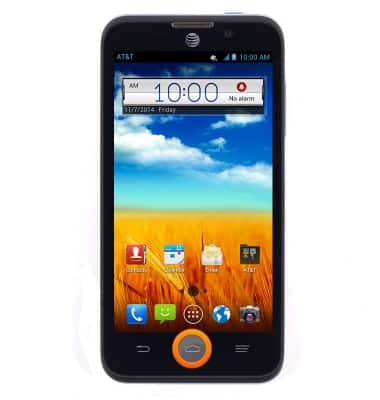

  6. Press the Home key to return to the home screen.
    device 2805/1387200.jpg

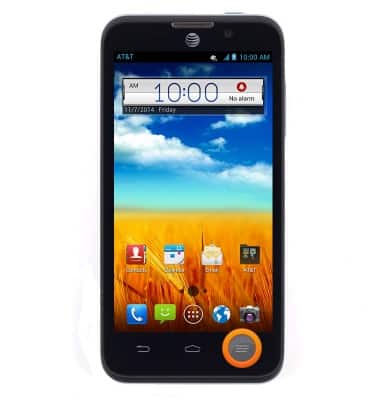

  7. Press the Menu key to view a contextual menu.
    device 2805/1387201.jpg

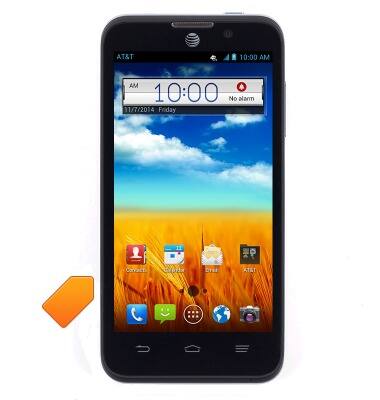

  8. The USB/Charging port is located on the side of the device.
    device 2805/1387202.jpg
  9. The Headphone jack is located on the top of the device.
    device 2805/1387203.jpg
