Device layout

This article provides an overview of the device layout.

INSTRUCTIONS & INFO
  1. Press the Power/Lock key to turn the device on or off, or put the display to sleep.
    device 3224/1688393.jpg

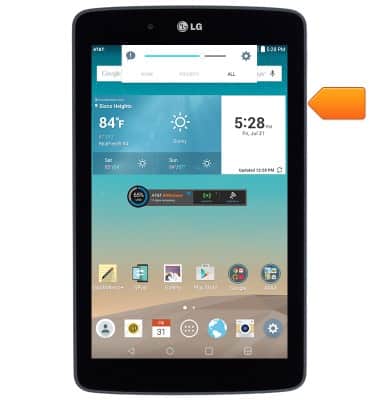

  2. Press the Volume keys to adjust volume.
    device 3224/1688394.jpg

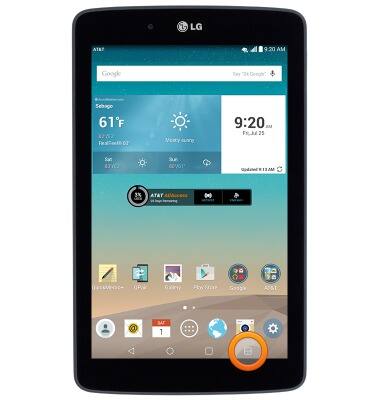

  3. Press the Dual window key to open two apps on screen at once.
    device 3224/1688402.jpg

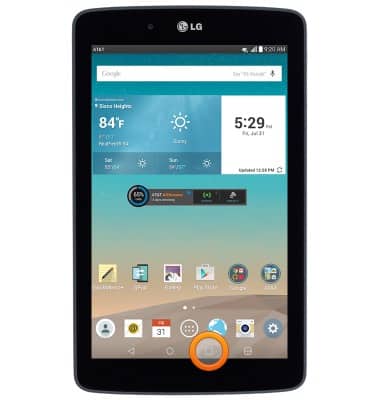

  4. Press the Recent Apps key to view a list of recently opened apps.
    device 3224/1688395.jpg

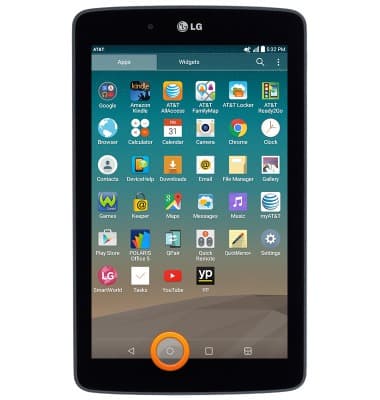

  5. Press the Home key to return to the home screen.
    device 3224/1688396.jpg
  6. Press the Back key to return to the previous screen.
    device 3224/1688397.jpg

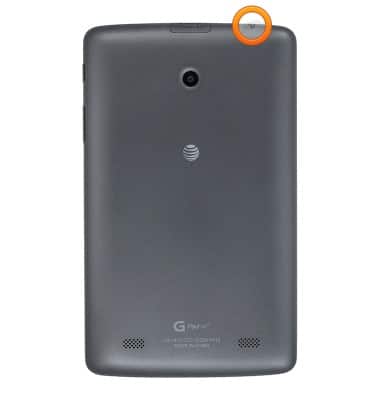

  7. The 3.5mm Headphone jack is located at the top left side of the device.
    device 3224/1688398.jpg

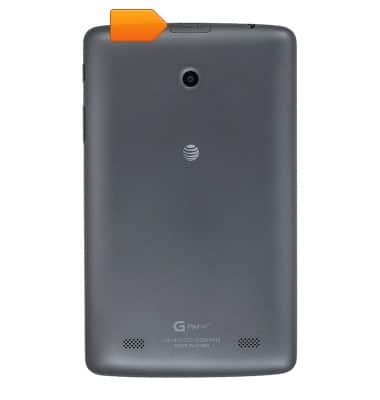

  8. The microSIM/microSD card slot is located on the top of the device.
    device 3224/1688399.jpg

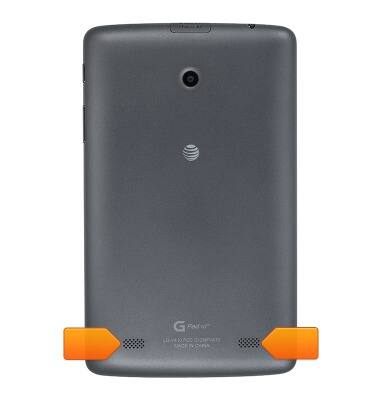

  9. The Speakers are located on the back of the device.
    device 3224/1688400.jpg

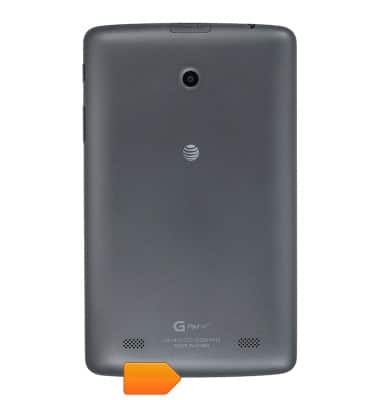

  10. The microUSB/Charging port is located on the bottom of the device.
    device 3224/1688401.jpg
