Insert SIM & Memory Card

Get instructions about how to install or remove a SIM or memory card in your device.

Prenote info

MicroSD/memory cards expand the storage capacity of the device and are sold separately. This device can use a microSD card up to 1TB.

In this tutorial, you will learn how to:



• Locate SIM tray

• Insert or remove SIM and microSD card



A No SIM notification will be displayed in the Notification bar of the lock screen when there is no SIM card in the device.



Locate SIM tray

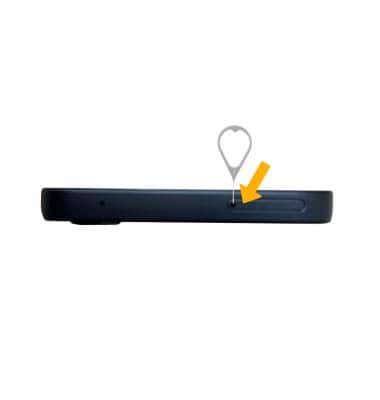

The SIM & microSD tray is located on the upper left side of the device. To insert a SIM or microSD card, insert a SIM tool into the small hole to eject the SIM & microSD tray.



Note: To prevent data corruption, it is recommended to unmount your memory card before removing it. To unmount your memory card, from the home screen, swipe down from the Notification bar, then select the settings Settings icon > scroll to and select Battery and device care > select Storage > Swipe left to SD card > menu icon Menu icon > Unmount.



Image 1



Insert or remove SIM and microSD card

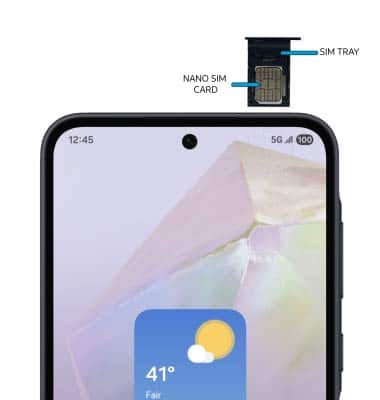

Insert the Nano SIM card into the SIM tray with the gold contacts facing up and the notched edge in the bottom left. Gently press the SIM card in until it clicks into place.



Image 2

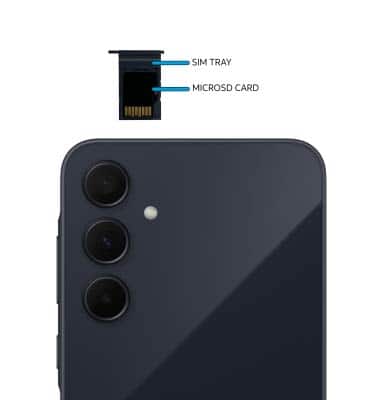

Insert the microSD card into the back of the SIM tray with the gold contacts facing up and the notched edge on the bottom right. Gently press the microSD card in until it clicks into place.



 Image 3



Storage

Internal Memory: Up to 128GB

External Memory: Up to 1TB
