Connect Using Ethernet

How to connect your device to the internet via Ethernet.

INSTRUCTIONS & INFO

In this tutorial, you will learn how to:


• Connect using Ethernet
• View devices connected via Ethernet


Connect using Ethernet

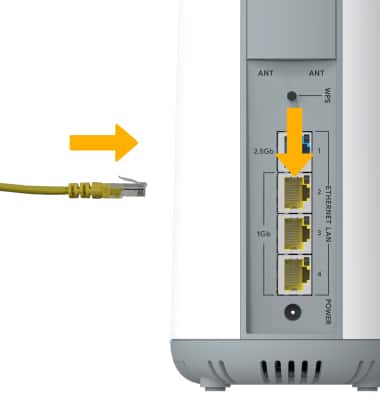

1. To connect to the 5G Gateway’s network using Ethernet, simply plug an ethernet cable into one of the ports labeled ‘ETHERNET LAN’ on the back of the device.



Image 1

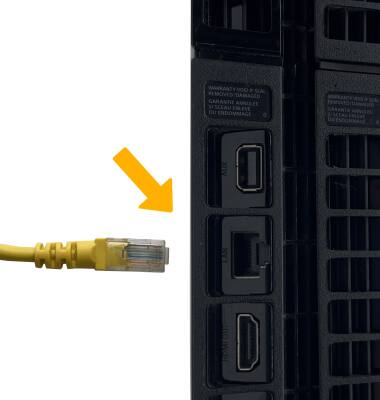

2. Plug the other end of the ethernet cable into the ethernet port on the desired device.



Image 2

View devices connected via Ethernet

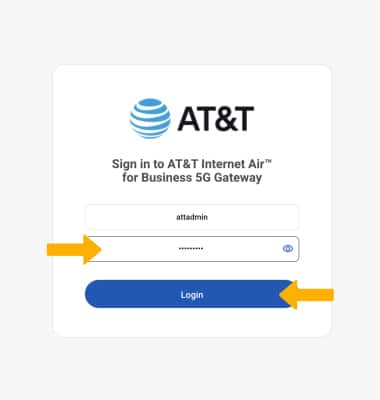

1. From your connected device's web browser, go to http://attwifi.manager or https://192.168.1.1. Enter your password, then click Login.



Note: Ensure that your device is connected to the 5G Gateway's Wi-Fi network. For more information, please see the Connect Devices to Wi-Fi or Connect PC or Mac to Wi-Fi tutorials. If you haven’t logged into the Web admin page before, the default password will be ‘admin’. You may be prompted to change the admin password.



Image 3

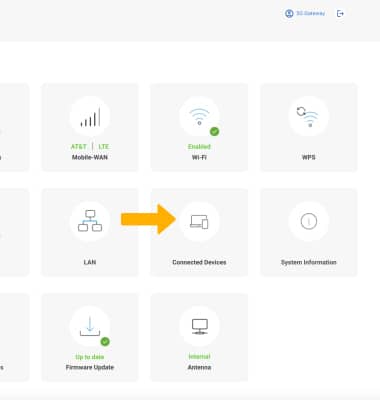

2. From the web admin's dashboard, click Connected Devices.



Image 4

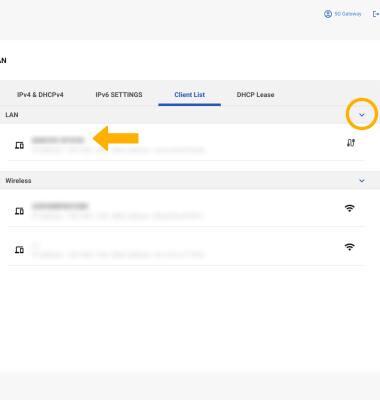

3. Click the LAN drop-down menu. Devices connected via Ethernet will be displayed.



Image 5
