LED Indicators

In this tutorial, you will learn how to:

• Locate the LED Status Lights
• Check 5G and 4G LED light status

Locate the LED Status Lights

The four LED lights located on the front of the device indicate the status of the 5G Gateway’s functionalities. Wait for the gateway to power up. Once the gateway is powered up, the LED Status Lights will turn solid. This will take approximately 2-3 minutes.

Check 5G and 4G LED light status

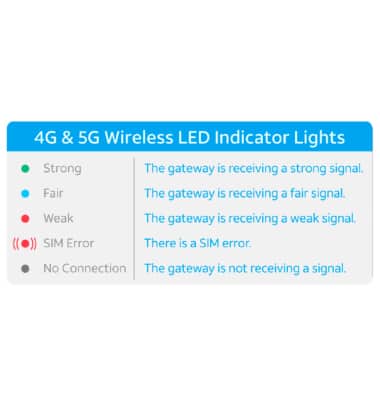

The 4G & 5G LED Status Lights indicate the wireless network signal strength and status.

• When the LED Status Lights are solid green, the wireless network signal is strong.

• When the LED Status Lights are solid blue, the wireless network signal is fair.

• When the LED Status Lights are solid red, the wireless network signal is weak.

• When the LED Status Lights are blinking red, there is a SIM error detected.

• When the LED Status Lights are solid gray, there is no network signal detected.

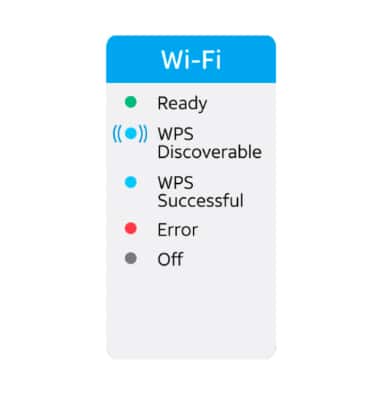

The Wi-Fi LED Status Lights indicate the Wi-Fi connection and WPS status.

• A blinking Blue LED status light for the Wi-Fi LED indicates WPS has been activated

• A solid Blue LED status light indicates WPS pairing has been successful.

• A solid Green LED status light indicates WiFi is active and ready.

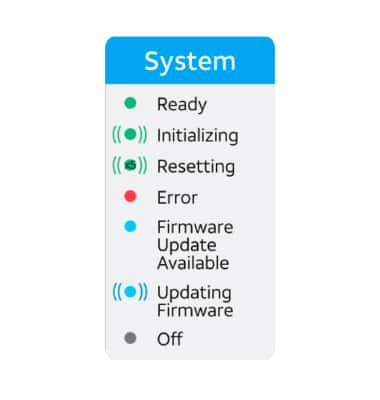

The System LED Status Lights indicate the status of the system functionality and firmware status.
